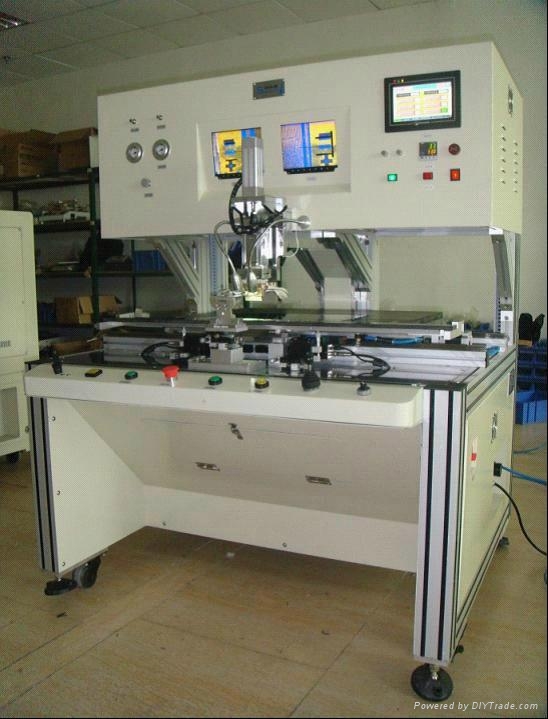

Pulse Heat TAB/FOG Bonding Machine for TV/LCD/LED Screen Repair
Clients Feedback
Applications:
* Adopt ACF heat bonding technics to connect TAB,FPC and TFT LCD
* Applied to repair heat bonding 9—80 inches LCD,TFT and FPD .
Features:
* Have the merit of low cost, first choice for maintaining big size LCD display modules
* Working style:fixed vacuum bottom module to load bearing LCD, approve of dismounting , easier
to transport
* The front type TAB counterpoint , easier and quicker to operate
*Super cameras with 100-200 times high definition enlarge & contraposition system are installed
at the bottom, can contraposition TAB definitely.
Parameters:
Heating mode:Pluse heat Dimension of thermal head:MAX 70×2(mm)
Temperature range:room — 500℃±1℃ Camera System:2 sets color CCD
Timer control:0.1S — 999H ±0.1S Power supply: AC220V 3000W
Pressure range:5– 245Kgf/ cm2 Cylinder size:￠40×75mm
Dimension:2000 ×1400 × 1450( mm) Total weight: About200 K
The system control is: panasonic - PLC control (single)
Production parameters have store brands on the market are samsung, LG, sharp, chi mei, auo, huaxing photoelectric, Hitachi, hanyu display, Huasheng, Zhonghua etc. Four different temperature set points starting temperature, the temperature of the first paragraph, the second section temperature, cooling temperature.PLC and touch screen communication, can according to production needs to extend the production process automatic control function. System automatically detect, abnormal alarm display function, make the equipment maintenance more quickly.
The stability control is: panasonic - TC2
Imported temperature sensing line and panasonic's newest chips (TC2) make more accurate temperature control, with fast heating time, temperature precision higher characteristic, and add heating curves and parameters of synchronous display.
The operating interface is: WEIVIEW full-color PDA (single communication)
6.5 -inch intelligent man-machine interface, programmable controller (PLC) control system, make the equipment operation is stable and reliable.
Features:
1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.
2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.
3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.
4, under the high magnification camera system, ensure that the product clearly counterpoint.
5, powerful software, perfect the system debugging, automatically detect fault and alarm function.
Application: suitable for 12-80inch TFT panel and TAB, FPC and LCD or PCB board combination bonding.
|
|

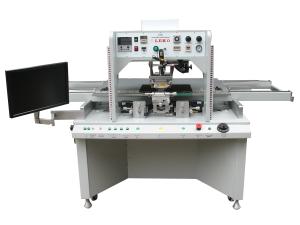

FPD FPD Repair Heat Bonder Machine LCD Repair Bonder,TAB Bonder Images
|
